Previous Topic | Next Topic Conferences MSTS Locomotive Design (Protected) Original message
MikeBrobst (75 posts)
Jun-04-02, 03:28 AM (EDT) "Have You Seen This Loco?" Does anyone have any more photos of this engine? I'm trying to make it in TSM but this is the only photo I can find, any help with photo's or even general dimensions would help.
Message Areas - "Have You Seen This Loco?" – image 1
Also if anyone has ever seen any other drawings like this (I'm working on this one also) please let me know where I can find them.
Message Areas - "Have You Seen This Loco?" – image 2
---Mike Brobst---

Message Areas - "Have You Seen This Loco?" – image 3

---Toledo, OH--- Alert Edit | Reply | Reply With Quote | Top
Table of Contents

Subject Author Message Date ID RE: Have You Seen This Loco? DaveDandy Jun-04-02 1 RE: Have You Seen This Loco? Lone_Gunman_SG Jun-04-02 2 RE: Have You Seen This Loco? MikeBrobst Jun-04-02 3 RE: Have You Seen This Loco? darkfyre Jun-05-02 4 RE: Have You Seen This Loco? DaveDandy Jun-05-02 5 RE: Have You Seen This Loco? MikeBrobst Jun-05-02 6 RE: Have You Seen This Loco? MikeBrobst Jun-05-02 7 RE: Have You Seen This Loco? cdntrains Jun-05-02 8 RE: Have You Seen This Loco? MikeBrobst Jun-06-02 9

Lobby | Topics | Previous Topic | Next Topic
Messages in this topic
DaveDandy (30 posts)
Jun-04-02, 11:52 AM (EDT) 1. "RE: Have You Seen This Loco?" At the ADtranz works in Kassel, a new Diesel-electric locomotive has been presented, the result of a co-operation between ADtranz and GETS (General Electric Transport Systems, Erie/USA). The DE-AC33C, named "Blue Tiger", is the first prototype of a whole new range of locomotives, especially for Asian countries with limited clearances and axle loads. The carbody (derived from the Egyptian DE2550, with narrow hood and two end cabs) and the 3-axle "Flexifloat" bogies (derived from the Eco2000 line) are built by ADtranz; the diesel engine, generator and traction motors come from GETS (derived from their American Dash-9 line). The 6-axle prototype, which will be tested in Germany first, reaches 120 km/h with a power of 2430 kW and weighs 108 t. Up to 200 km/h and 3240 kW are possible with the same concept. Pakistan Railways have ordered 30 units for 1676 mm wide gauge.From Europen Railway NewsDave Remove | Alert Edit | Reply | Reply With Quote | Top
Lone_Gunman_SG (245 posts)
Jun-04-02, 10:55 PM (EDT) 2. "RE: Have You Seen This Loco?" There is a black and white photo in MR (forgot which issue) but it is of the same side Remove | Alert Edit | Reply | Reply With Quote | Top
MikeBrobst (75 posts)
Jun-04-02, 11:58 PM (EDT) 3. "RE: Have You Seen This Loco?" ok, thanks. If you happen to see any dimensions let me know...width height and length is all a really need, I could probably guess the rest.---Mike Brobst---

Message Areas - "Have You Seen This Loco?" – image 4

---Toledo, OH--- Remove | Alert Edit | Reply | Reply With Quote | Top
darkfyre (332 posts)
Jun-05-02, 01:01 PM (EDT) 4. "RE: Have You Seen This Loco?" Hmm..I would assume DE-AC33C would stand for
Diesel-Electric
Alternating Current
3300 HP
6 Axles?
Message Areas - "Have You Seen This Loco?" – image 5
Message Areas - "Have You Seen This Loco?" – image 6 -Darkfyre Remove | Alert Edit | Reply | Reply With Quote | Top
DaveDandy (30 posts)

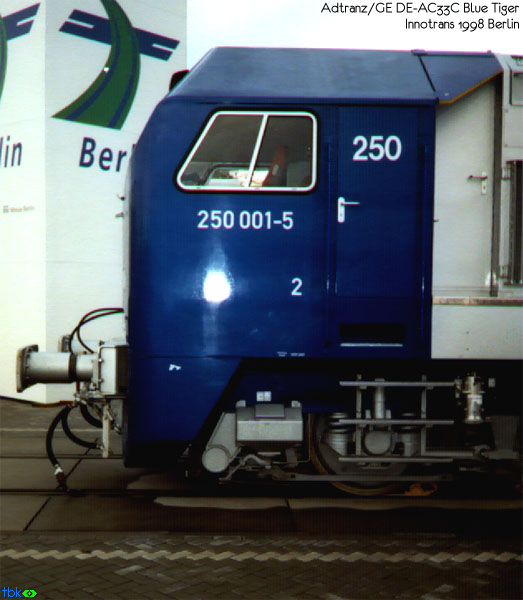

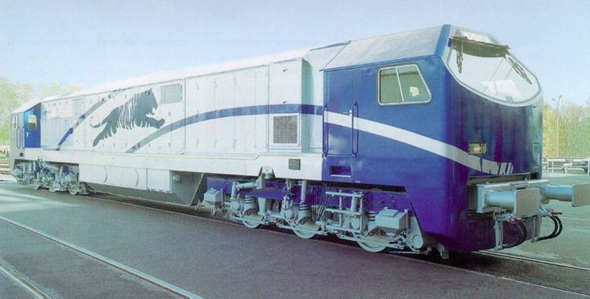

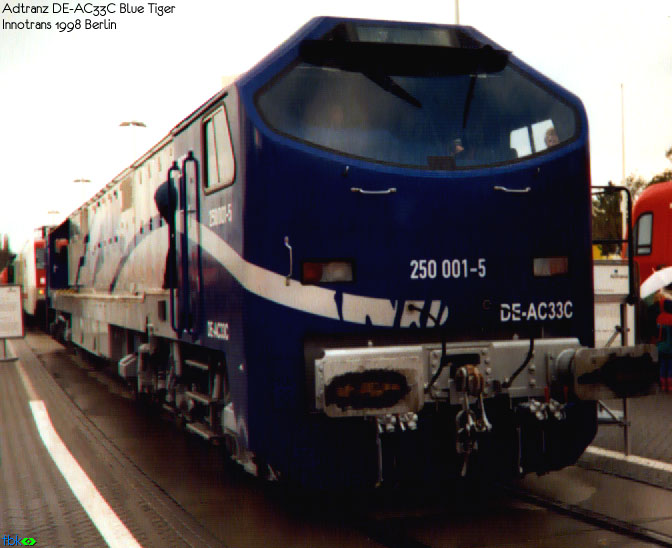

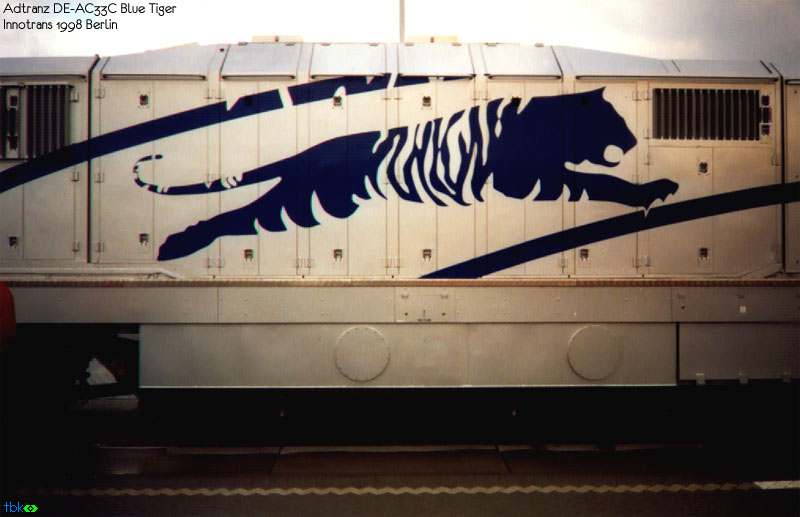

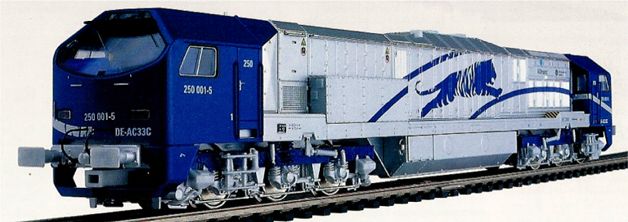

Jun-05-02, 01:11 PM (EDT) 5. "RE: Have You Seen This Loco?" I've been working on this one too, but in 3d canvas. Everything I've done earlier has been in TSM. This is my first try at canvas and it's going pretty slow. Here are some additional pics I have. I don't have a roof shot and not a real clear picture of the bogies, but for what they're worth, here they are:Message Areas - "Have You Seen This Loco?" – image 7 Message Areas - "Have You Seen This Loco?" – image 8Message Areas - "Have You Seen This Loco?" – image 9Message Areas - "Have You Seen This Loco?" – image 10Message Areas - "Have You Seen This Loco?" – image 11Message Areas - "Have You Seen This Loco?" – image 12Message Areas - "Have You Seen This Loco?" – image 13Message Areas - "Have You Seen This Loco?" – image 14Message Areas - "Have You Seen This Loco?" – image 15Message Areas - "Have You Seen This Loco?" – image 16Message Areas - "Have You Seen This Loco?" – image 17 I also have cab photos, but will have to resample them at a lower rate because the files are too large. Once I do that, I'll send them.Dave
Remove | Alert Edit | Reply | Reply With Quote | Top
MikeBrobst (75 posts)
Jun-05-02, 01:37 PM (EDT) 6. "RE: Have You Seen This Loco?" LAST EDITED ON Jun-05-02 AT 02:08 PM (EDT)I found a few more myself, I'm sure there's more, just need to keep looking Where did you find yours? I'd like to get the larger copies if I could. this is the only shot of the top I have found so far.
Message Areas - "Have You Seen This Loco?" – image 18
Message Areas - "Have You Seen This Loco?" – image 19
---Mike Brobst---

Message Areas - "Have You Seen This Loco?" – image 20

---Toledo, OH--- Remove | Alert Edit | Reply | Reply With Quote | Top
MikeBrobst (75 posts)

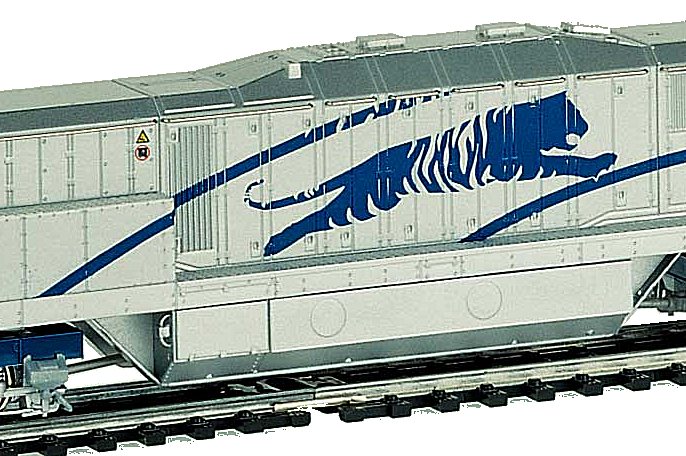

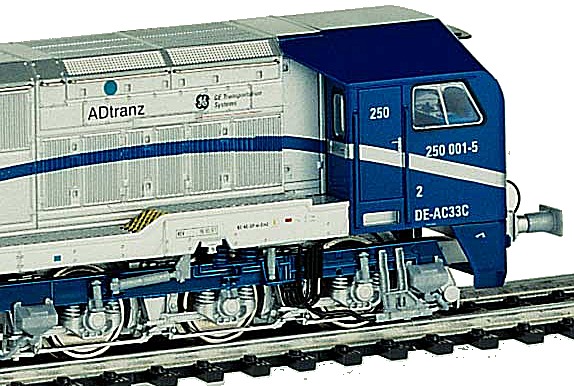

Jun-05-02, 02:58 PM (EDT) 7. "RE: Have You Seen This Loco?" Found another one of a HO scale model
Message Areas - "Have You Seen This Loco?" – image 21
Message Areas - "Have You Seen This Loco?" – image 22
Message Areas - "Have You Seen This Loco?" – image 23
---Mike Brobst---

Message Areas - "Have You Seen This Loco?" – image 24

---Toledo, OH--- Remove | Alert Edit | Reply | Reply With Quote | Top
cdntrains (29 posts)
Jun-05-02, 06:26 PM (EDT) 8. "RE: Have You Seen This Loco?" That "tiger" unit is quite unique looking.. (haven't seen one of those before since I'm on the western side of the planet)But I'm curious as to what the heck that BCTransit (Translink) "thing" is!? When was that picture drawn!?!?Thanks, cdntrains Message Areas - "Have You Seen This Loco?" – image 25 Message Areas - "Have You Seen This Loco?" – image 26 Message Areas - "Have You Seen This Loco?" – image 27 Message Areas - "Have You Seen This Loco?" – image 28 Message Areas - "Have You Seen This Loco?" – image 29 Message Areas - "Have You Seen This Loco?" – image 30 Message Areas - "Have You Seen This Loco?" – image 31 Message Areas - "Have You Seen This Loco?" – image 32 Message Areas - "Have You Seen This Loco?" – image 33 Message Areas - "Have You Seen This Loco?" – image 34 "must be trains in the blood"
http://www.frograil.com/gifs/gifs.htm Remove | Alert Edit | Reply | Reply With Quote | Top
MikeBrobst (75 posts)
Jun-06-02, 01:18 AM (EDT) 9. "RE: Have You Seen This Loco?" I have no idea when it was drawn, I ran into it when I was looking for train pics, it seemed like it would be a neat idea for a project if i can find more pics---Mike Brobst---

Message Areas - "Have You Seen This Loco?" – image 35

---Toledo, OH--- Remove | Alert Edit | Reply | Reply With Quote | Top
